Key Features
- Large equipment entry port
- Replaceable gloves
- Circulation System and Catalyst
- Interior power supply with 5 outlets
- Ports for additional tubing or cords
- Vacuum pump included
- Temperature control options
SPECIFICATIONS

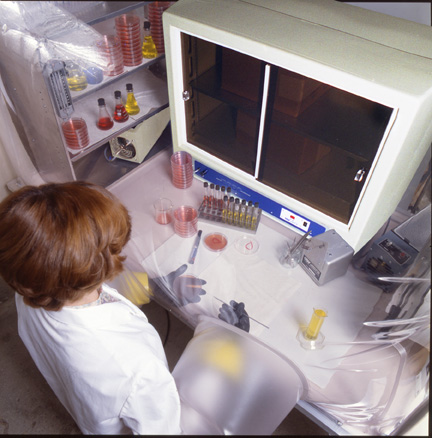

Coy Vinyl Anaerobic chambers are constructed of flexible PVC with padded base, efficient vacuum airlock, and aluminum support frame.
The flexible nature of the unit allows for the user to reach deeper and higher into the unit and, combined with padded base and larger glove ports, allows for greater ergonomics vs. a rigid glove box. The optically clear vinyl greatly increases operator vision, and the user does not encounter any glove “fight back” as the flexible nature allows the entire glove box to give with changes to internal volume. The fact the unit does not expel gas when pressure changes means a dramatic difference in gas consumption rates and thus operational cost savings.
| Glove Box Specifications | Type C | Type A | Type B |
|---|---|---|---|
|
Total Glove Box Footprint Due to the flexible nature of the unit the above dimensions can vary with operational pressure. |
153 L x 97 D (H= 142) cm | 200 L x 97 D (H= 142) cm | 249 L x 97 D (H= 142) cm |
| Internal Work Area | 106 L x 81 D cm | 149 L x 81 D cm | 198 L x 81 D cm |
| Glove Box Working Incubation Capacity | 576 x 90mm Petri Dishes | 1152 x 90mm Petri Dishes | 1344 x 90mm Petri Dishes |
Glove Box Specifications
| Construction Material | Vinyl (PVC) and Aluminum |
| Glove Port Style | 27 w x 43 H Oval |
| Catalyst | Palladium (maintains 0-5 parts per million Oxygen) |
| Glove Box Temperature Control (option) | +3 ambient to 40° C Standard on all Heated Chambers |
| Airlock Capacity | 78 x 100mm plates |
| Airlock Cycle Times | 30 – 160 seconds User Adjustable |
| Interior Power Supply | 4 outlets Standard 110 or 220volt options available *Note certain optional accessory equipment from Coy may occupy some or all of these outlets |
| Glove Material | Vinyl Sleeve with Latex Glove *Neoprene optional for those with latex allergies |
| Additional Access Ports | |
| Cords/Tubing | 68.5cm dia. Port Left side location as standard |
| Gas Requirements | Dual or Single tank operation Background Gas (any inert gas usually N2) and Anaerobic Gas (5%H2) CO2 % mixes are based on biological study needs and not necessary to chamber operation |
Primary Catalog
Accessories Catalog
General Anaerobic Chamber Consumable Parts
Some common parts and accessories are available for online purchase with credit cards only. All on-line sales are final. If ordering by P.O., please submit your P.O. to [email protected]. Please note that some accessories do not fit all products.
The Coy Vinyl Anaerobic Chamber is the most cited chamber in the world for anaerobic microbiology because it is the strictest anaerobic system on the market and the most efficient with regards to gas consumption. The vinyl expands and contract to allow for changes in internal pressure without expelling the expensive gas mix to room atmosphere saving you up to 60% on your operational gas cost annually.
The large oval glove ports allow all user to reach deeper and higher into the chamber for greater storage capacity and ergonomics. This allows a vinyl unit to be manufactured larger than other rigid style units which in turn makes it easier to maintain the anaerobic chamber conditions and helps create a stricter control of the anaerobic conditions.
Cited in more then 93 published research papers
Browse our CitationsNew Quick Change Cuffs
Introducing the latest innovation for the most cited anaerobic chamber in the world: the Quick Change Cuff (QCC) system for the Coy Vinyl Anaerobic Chambers. What use to be a 20-30 minute exchange is now ≤ 30 seconds with the QCC. Read more »
Anaerobe Co-Culture
The Coy Anaerobe Co-Culture (CACC) system makes it simple to host anaerobe interactions under physiologically relevant oxygen conditions. This Co-Culture System is a cost effective and easy to assemble system to any anaerobic chamber. Read more »
