Click here to view all possible accessories.  Below are common accessories associated with the Coy Aluminum Basic Glove Boxes.

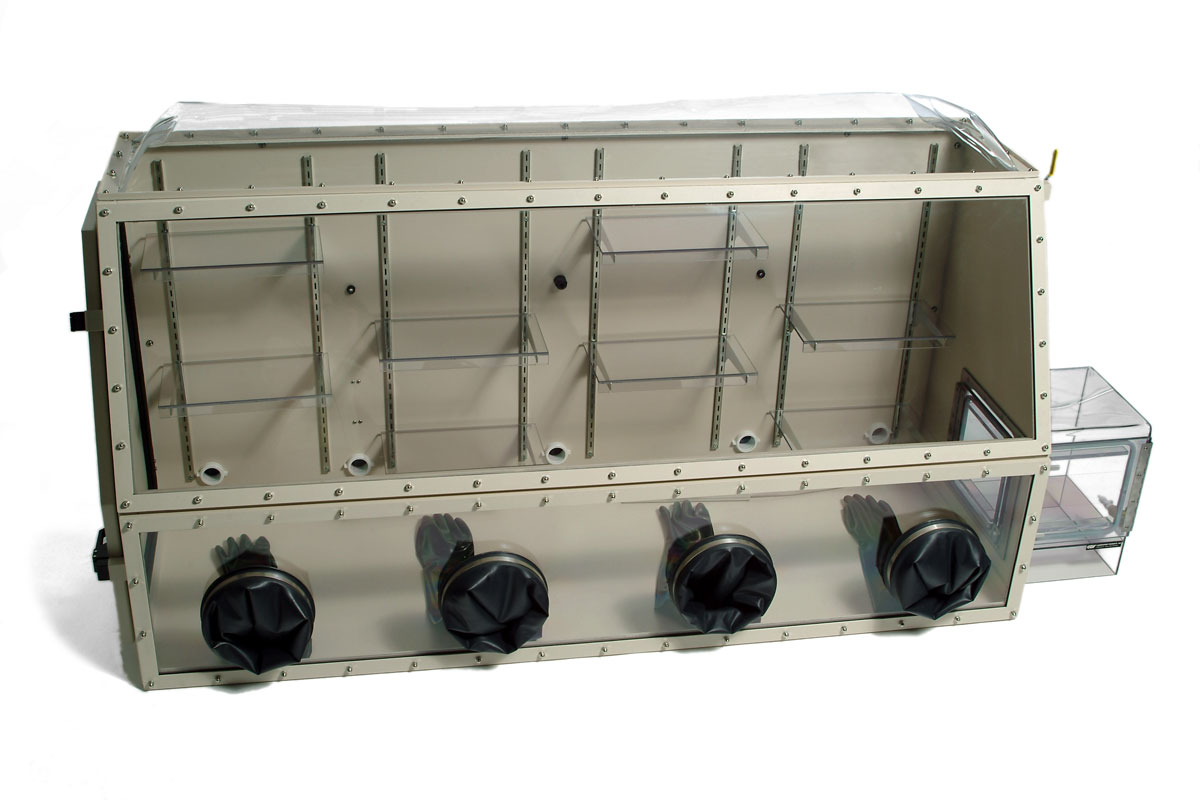

• Airlock for sample transfer
• Atmosphere filtration system (HEPA)
• Oxygen monitor or control system
• Humidity monitor or control system
• CO₂ control and monitoring system
• Desiccant drying system
• Feed-thru ports (for cords and tubing pass thru to chamber interior)
• Custom sizing (contact Coy for details)
• Flow meters for precise gas purge control
• Microscope port
• Temperature control options (chiller &/or heaters)

For harsh chemical operations ask for tempered glass upgrades

Affordable, modular, Aluminum Glove Boxes provide for a variety of atmospheres including, containment, humidity, temperature, oxygen controls and simple containment (isolation applications). Other applications include:

• Dry atmosphere storage and packaging
• Electronic equipment assembly
• Chemical mixing
• Inert gas purge
• Dry weighing
• Temperature control
• Particulate control

Aluminum Glove Box Details

All construction is from the following durable materials:

• Epoxy-coated aluminum (1/8″, 3.2mm thick)
• Clear polycarbonate (1/4″, 6.4mm thick) viewing and glove port panel
• Patented Diaphragm Top manufactured from flexible PVC
• EPOM rubber door gaskets
• Advanced silicone adhesives and sealants
• Self sealing quick disconnect gas fittings
• Automatic pressure relief valves
• 1/4″ (6mm) NPT gas inlet ball valve

Construction

Many accessories are mounted to the glove box exterior to maximize interior work area and ease of maintenance. Quick disconnect fittings with NPT valves are included for easy self sealing connection of tubing. The viewing screen is designed to provide excellent interior shadow-free ambient light optional overhead lighting is available. Tempered glass may be substituted for the standard polycarbonate for certain chemical operations. All units are hermitically sealed and pressure checked at the factory for leaks. An inexpensive gas leak detector can be purchased for field-testing. GFI power lines are installed in humidified systems.
